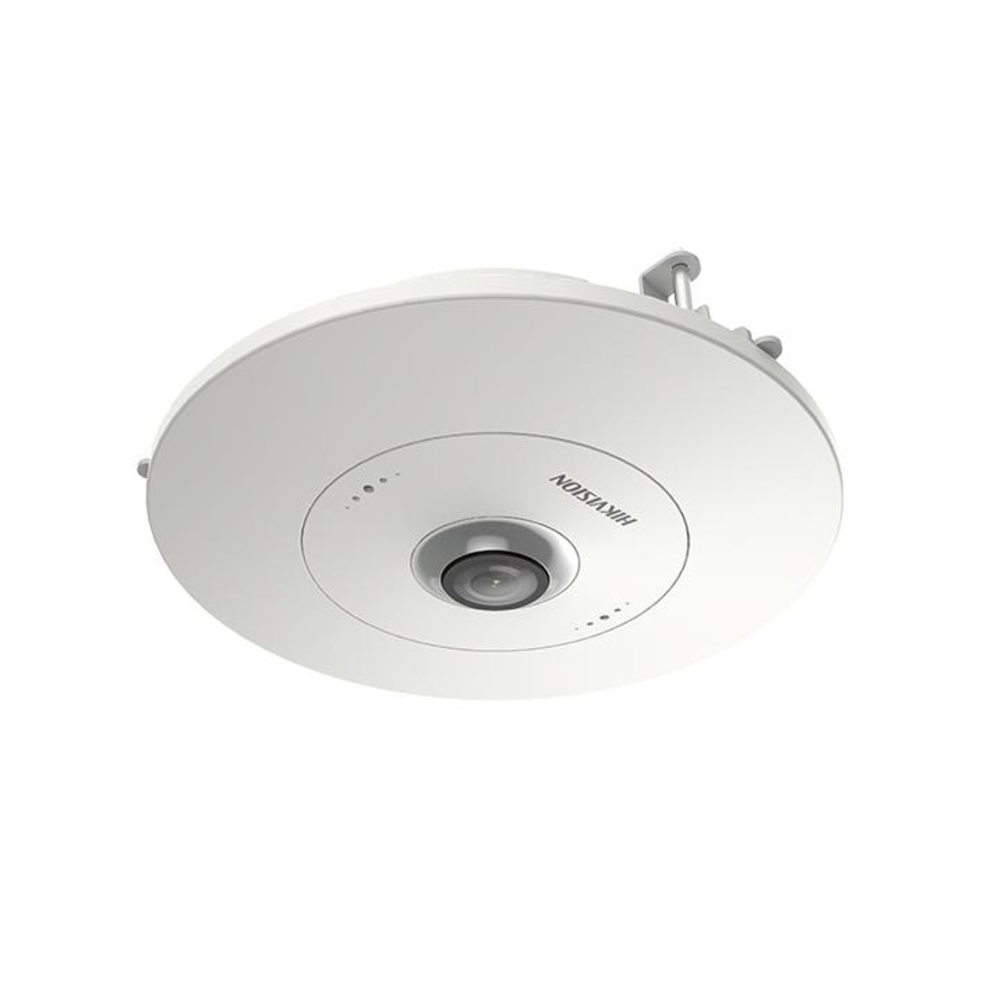

Hikvision DS-2CD63C5G0E-S/RC

Hikvision DS-2CD63C5G0E-S/RC 12MP 360° PoE IP DWDR In-Ceiling / Flush-Mount / Recess-Mount Fisheye Dome Camera with Built-in Audio Mic

Hikvision DS-2CD63C5G0E-S/RC 12MP 360° PoE IP DWDR In-Ceiling / Flush-Mount / Recess-Mount Fisheye Dome Camera with Built-in Audio Mic

Features:-

  • 12MP 1/1.7″ progressive scan CMOS sensor
  • 1/1.7” Progressive Scan CMOS
  • Max. 4000 × 3000 @ 20fps
  • Up to 14 live-view display modes
  • Digital WDR
  • Built-in microphone
  • Smart features:- behavior analyses, and 1 exception detection
  • In-ceiling Mounting

Camera

  • Image Sensor: 1/1.7″ Progressive Scan CMOS
  • Max. Resolution: 4000 × 3000
  • Min. Illumination: Color: 0.06 Lux @ (F2.4, AGC ON), B/W: 0.012 Lux @ (F2.4, AGC ON)
  • Shutter Time: 1 s to 1/100,000 s

Lens

  • Focal Length & FOV: 2 mm, 360° (In-ceiling mounting)
  • Lens Mount: M12
  • Aperture: F 2.4

Video

  • Main Stream: 50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560); 60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)
  • Sub-Stream: 50Hz: 20fps (720 × 720, 640 × 480); 60Hz: 20fps (720 × 720, 640 × 480)
  • Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub stream: H.265 / H.264 / MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): H.265 and H.264 support
  • Region Of Interest (ROI): 4 fixed regions for main stream and sub-stream

Fisheye Display

  • Mount Type: Support in-ceiling mounting
  • Display Mode: 14 display modes in total – Software decoding: Fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder; Hardware decoding: Fisheye view, 180 panorama view, panorama view, 4PTZ, 4PTZ fusion, fisheye + 3PTZ

Audio

  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • Audio Sampling Rate: 8 kHz/16 kHz
  • Environment Noise Filtering: Yes

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: ONVIF (PROFILE S, PROFILE G), ISAPI
  • User/Host: Up to 32 users. 3 user levels, administrator, operator and user
  • Security: Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
  • Network Storage: Support microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client: iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
  • Web Browser: IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+


  • Image Settings: Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
  • Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC, HLC, defog, 3D DNR
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface

  • Ethernet Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
  • On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Built-In Microphone: -S: 2 built-in microphones
  • Audio: -S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm), mono sound
  • Alarm: -S: 1-ch alarm input, max. 12 V; 1-ch alarm output, max 12 VDC, 0.5 A
  • Reset Key: Yes

Event

  • Basic Event: Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, Audio exception detection

General

  • Power: 12 VDC±20%, PoE (802.3af, class 3), two-core terminal block
  • Dimension: Ø165 × 69 mm (6. 5″ × 2.6″)
  • Approx. 480 g (1.1 lbs)
  • Startup And Operating Conditions: -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
  • General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

  • EMC: IC: IC-VoC(ICES-003 Issue 7:2020); FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B); KC: KN32:2015,KN35:2015; CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013); RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015
  • Safety: CB: IEC 60950-1; UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014; LOA: SANS IEC60950-1; BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015
  • Environment: CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
Camera Resolution

12MP

Camera Type

FishEye Camera

Wide Dynamic Range

DWDR

IP Max Res

12MP

Lens Type

Fixed Lens

Surveillance Type

IP

Weatherproof

Yes

Weatherproof IP Rating

IP67

Image Sensor Size

1 / 1.7"

Vandalproof

IK10
